Tripod & Pan/Tilt Head Set (XR150, XR200, XRS3 Sources)

BRS Innovations

  • $69899


Golden Engineering SourcesIdeally suited for the XR150, XR200 and XRS3, this Tripod set has been specifically chosen to meet the portability and weight requirements of the Golden Engineering XR150, XR200 and XRS3 portable x-ray source.


Set includes:

  • Manfrotto MT190XPRO3 Aluminum Tripod
  • Manfrotto 808RC4 3-Way Pan/Tilt Head

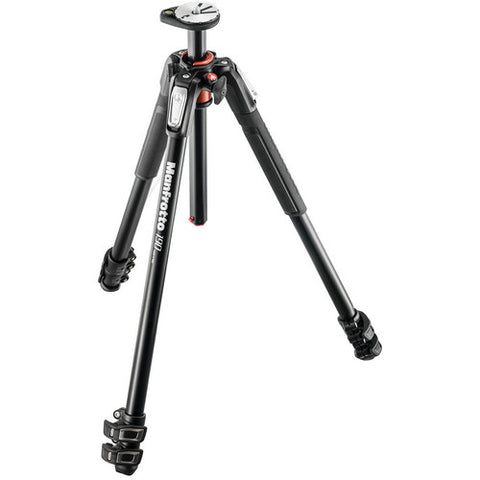

The black, redesigned MT190XPRO3 Aluminum Tripod from Manfrotto builds on the success and popularity of the previous 190 series with professional hardware and convenience features that make it even easier to use than its predecessor.  Set up is faster than ever with Manfrotto's Quick Power Lock System that allows you to completely extend the tripod legs with just one hand. Once set up you can use the MT190XPRO3's rapid center column in standard vertical mode or swing it into horizontal position like a boom with Manfrotto's 90° Column feature. Enlarged tabs on the individual leg angle selectors allow you to get down to only 3.5" for macro work with the column in horizontal mode. And once you're down there you can attach any of Manfrotto's flexible or articulated arms to hold lights or reflectors via the Easy Link plug built into the tripod's spider.

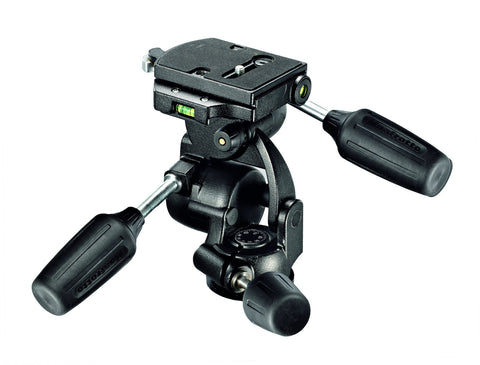

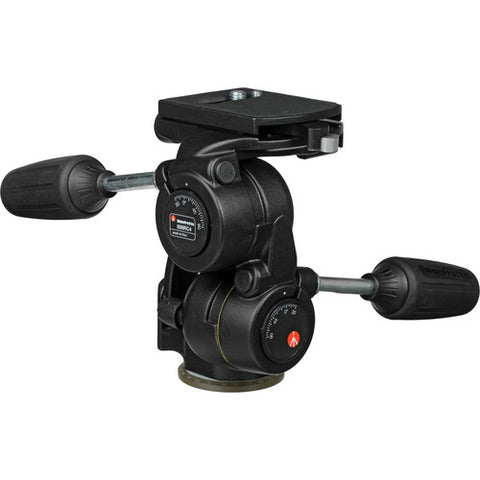

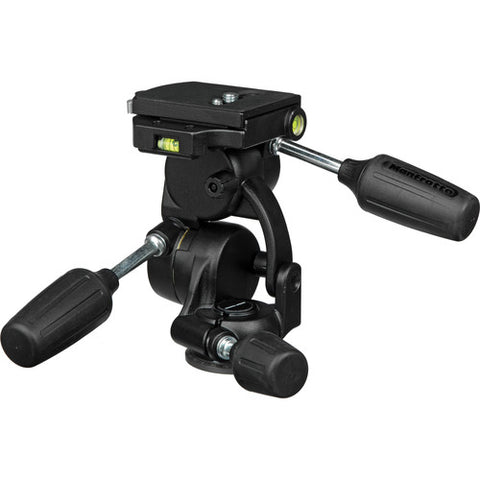

The Manfrotto 808RC4 3-Way Pan/Tilt Head is the redesigned model in the three-way range of heads. The 808RC4 now also includes the Double Axis Spring System which consists of a built-in 3.3 lb spring for both the front tilt and side tilt movements. It also incorporates dual axis bubble levels to better achieve level shots.


Specifications

Tripod
Load Capacity 15.4 lbs / 7 kg
Maximum Working Height 63" / 160 cm
Max Height without Center Column 53.2" / 135.1 cm
Minimum Working Height 3.5" / 8.9 cm
Folded Length 23.2" / 58.9 cm
Head Mount Type 3/8"-16 Screw
Weight 4.3 lbs / 2 kg
Materials Aluminum Alloy



Pan/Tilt Head
Load Capacity 17.6 lb (8 kg)
Height 6.1" (15.5 cm)
Quick Release Yes
Spirit Level Yes, double
Tension Control No, but does have balance spring
Tripod Mount Thread Size 3/8"
Weight 3 lb (1.370 kg)
