Tripod & Pan/Tilt Head Deluxe Set (XR150, XR200, XRS3 Sources)

BRS Innovations

  • $1,09999

Golden Engineering SourcesIdeally suited for the XR150, XR200 and XRS3, this Deluxe Tripod set has been specifically chosen to meet the portability and weight requirements of the Golden Engineering XR150, XR200 and XRS3 portable x-ray source.

Set includes:

  • Manfrotto 475B Geared Tripod
  • Manfrotto 808RC4 3-Way Pan/Tilt Head

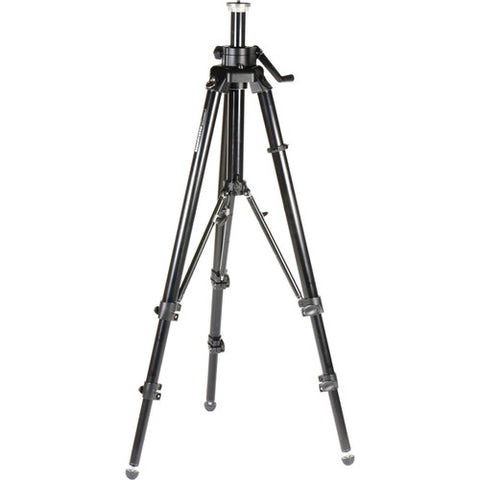

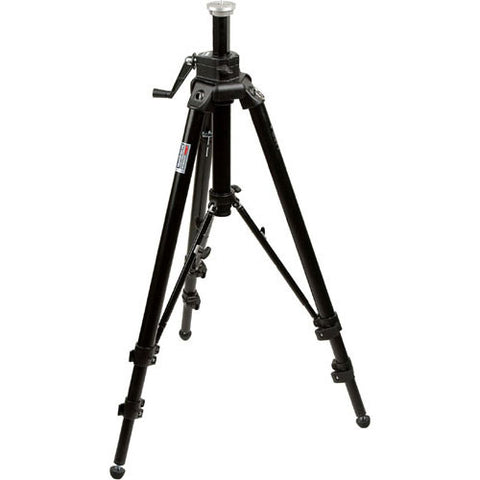

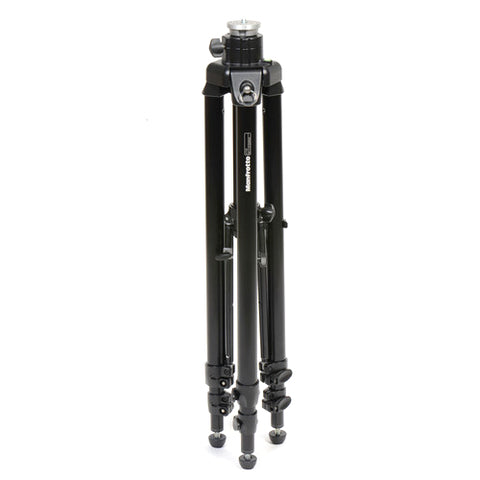

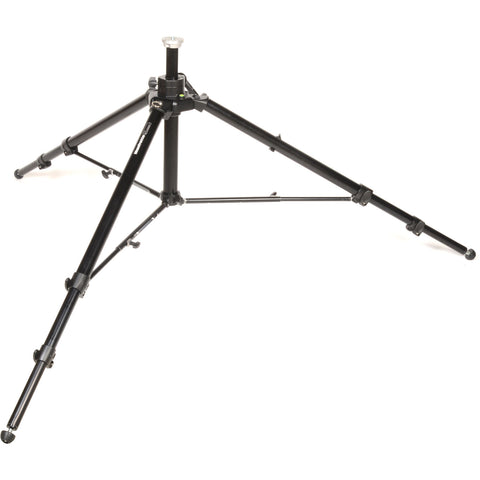

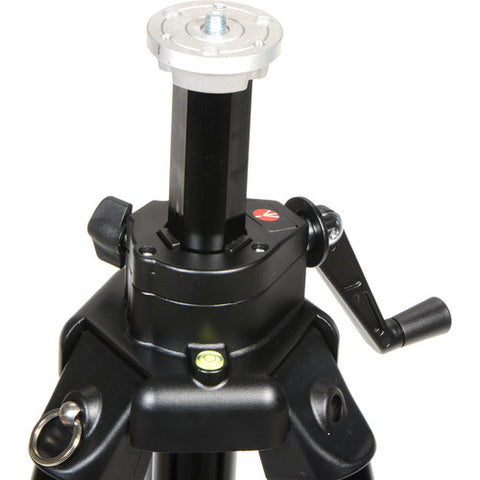

The Manfrotto 475B Pro Geared Tripod with Geared Column is a workhorse with modernized features, in essence a much improved version of the venerable 3036. It can extend to over 6' tall, and the geared center column cannot lose height accidentally. The 475 maintains stability at all heights, and the innovative leg braces allow for both infinite leg spread & quick setup. A spirit level and convertible rubber/spike feet are included.

The Manfrotto 808RC4 3-Way Pan/Tilt Head is the redesigned model in the three-way range of heads. The 808RC4 now also includes the Double Axis Spring System which consists of a built-in 3.3 lb spring for both the front tilt and side tilt movements. It also incorporates dual axis bubble levels to better achieve level shots.


Load Capacity 26.5 lbs / 12 kg
Maximum Working Height 74" / 188 cm
Max Height without Center Column 63.8" / 162.1 cm
Minimum Working Height 16.9" / 42.9 cm
Folded Length 31.5" / 80 cm
Head Mount Type 3/8"-16 Screw
Weight 9.5 lbs / 4.3 kg
Materials Aluminum Alloy
Bubble Level Yes


Pan/Tilt Head
Load Capacity 17.6 lb (8 kg)
Height 6.1" (15.5 cm)
Quick Release Yes
Spirit Level Yes, double
Tension Control No, but does have balance spring
Tripod Mount Thread Size 3/8"
Weight 3 lb (1.370 kg)
