XR150

NEW GFX Model

Portable X-Ray Source

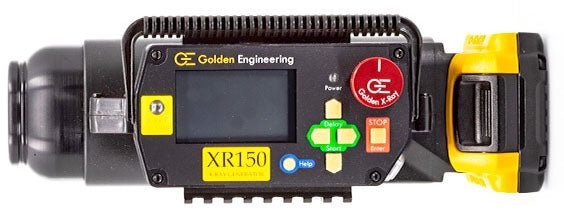

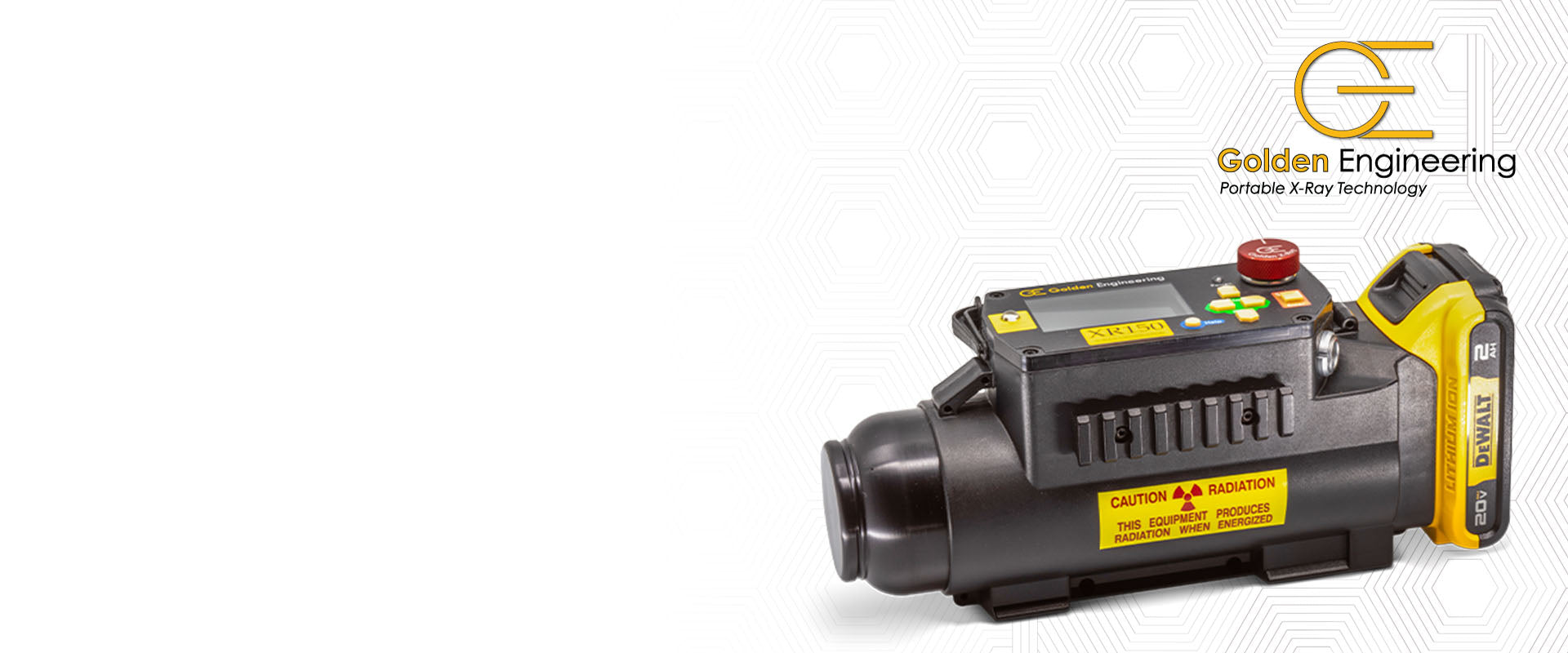

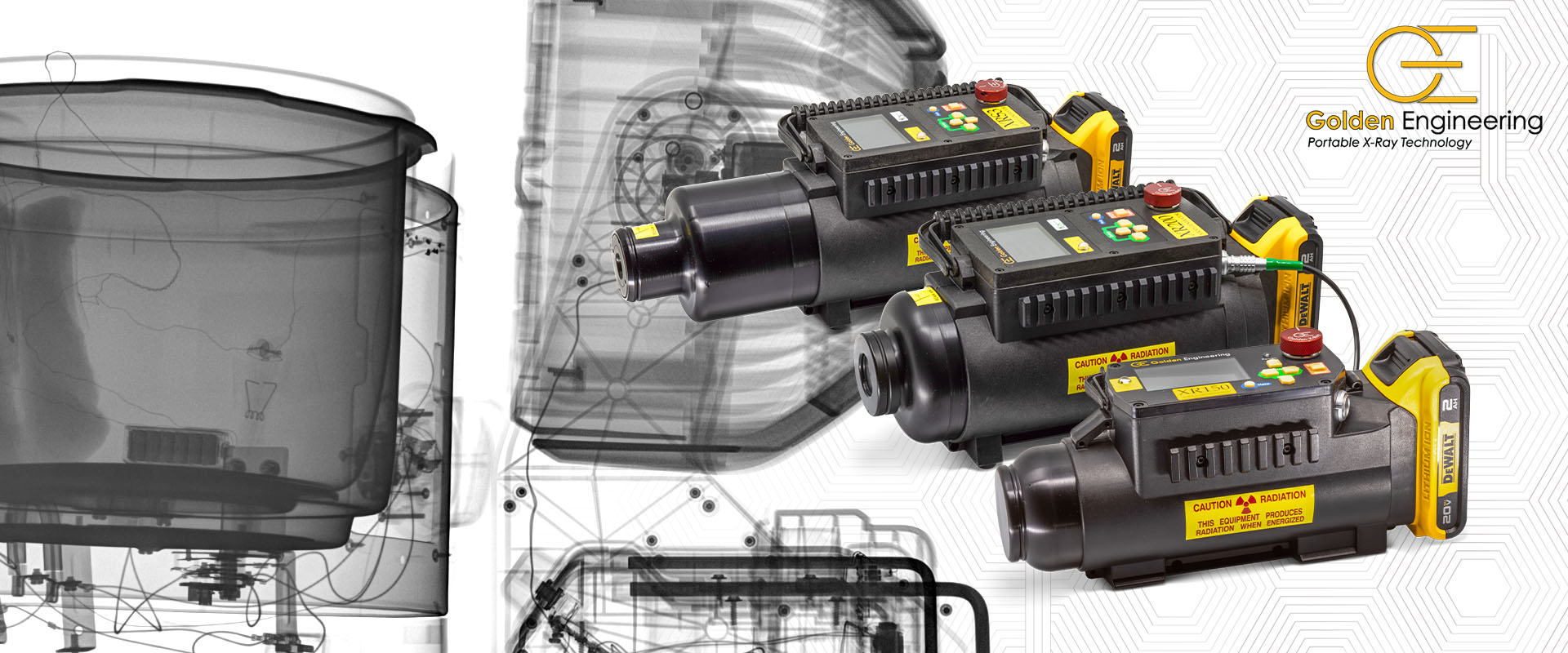

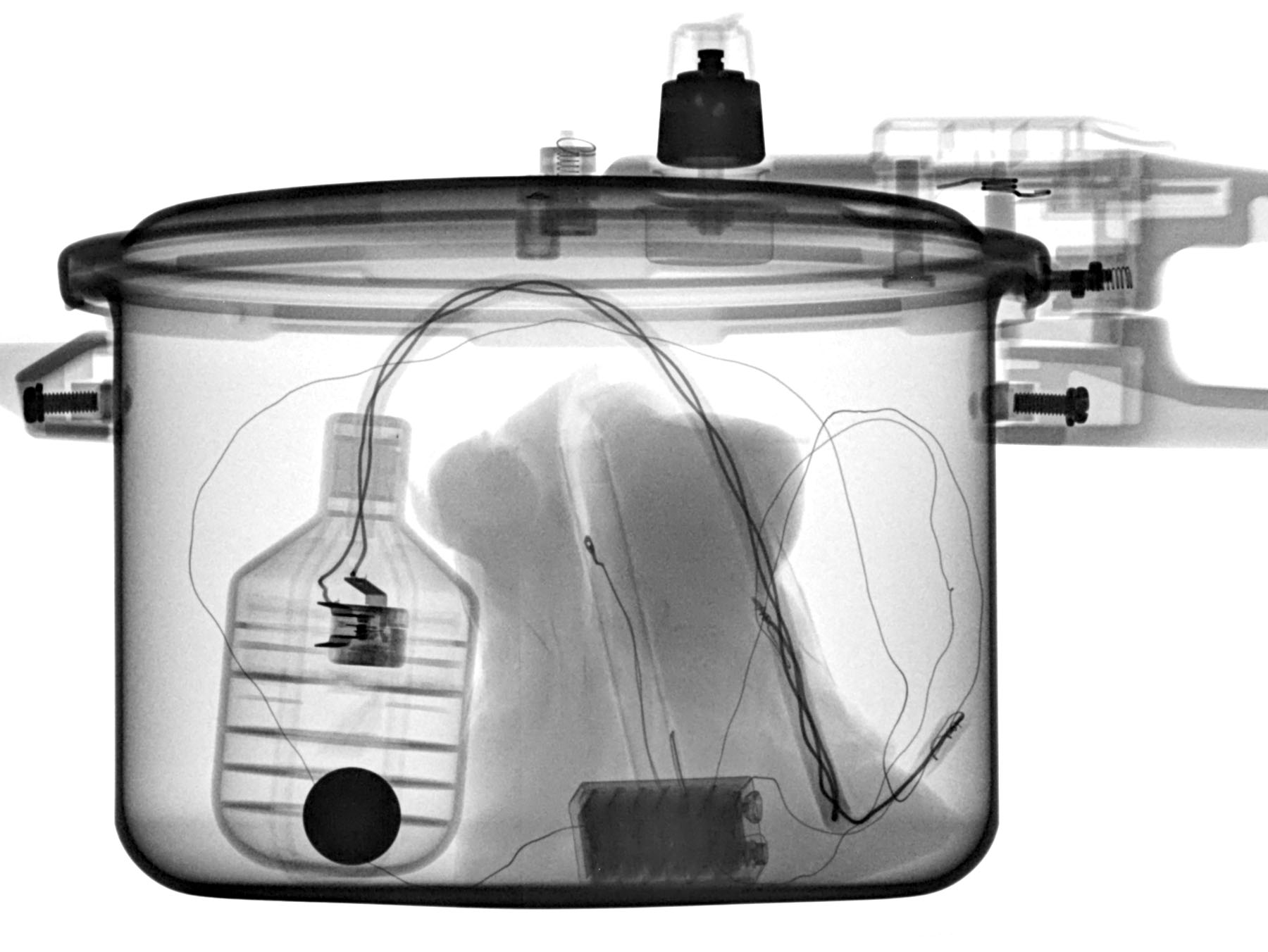

The XR150, from Golden Engineering, is a battery powered pulsed X-ray machine used for security and light industrial applications. The XR150 weighs less than five pounds, but is capable of penetrating ½” of steel making it an ideal tool for use in remote locations.

Features

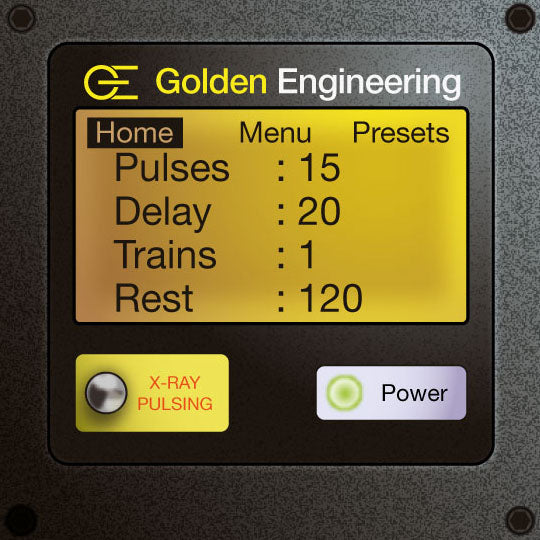

  • Pulse setting from 1 to 999 counts
  • Select 1 or 3 pulses per count in software
  • Program countdown delay timing (5 - 240 seconds)
  • Set multiple pulse trains
  • Select time delay between pulse trains
  • Records total life pulses on source
  • Resettable pulse tracker
  • Variable pulse rate (1 pulse per second or slower)
  • Battery charges in 60 minutes

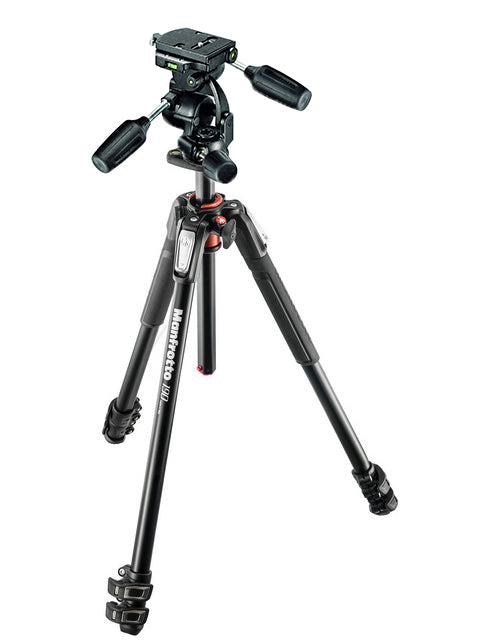

  • Threaded socket for tripod (6.35 mm / 0.25”, 20 threads/in.)
  • Tie off points for custom handles and fasteners
  • Complies with Health Canada regulations, including the Radiation Emitting Devices Act.

Highly Portable

  • Source with battery is 20% lighter than previous version
  • Kit weighs 13.4 lbs; 32% lighter that predecessor
  • Compact case size is 35% smaller in volume
  • Battery weighs less than 0.5 lbs (0.23 kg)

Standard Components

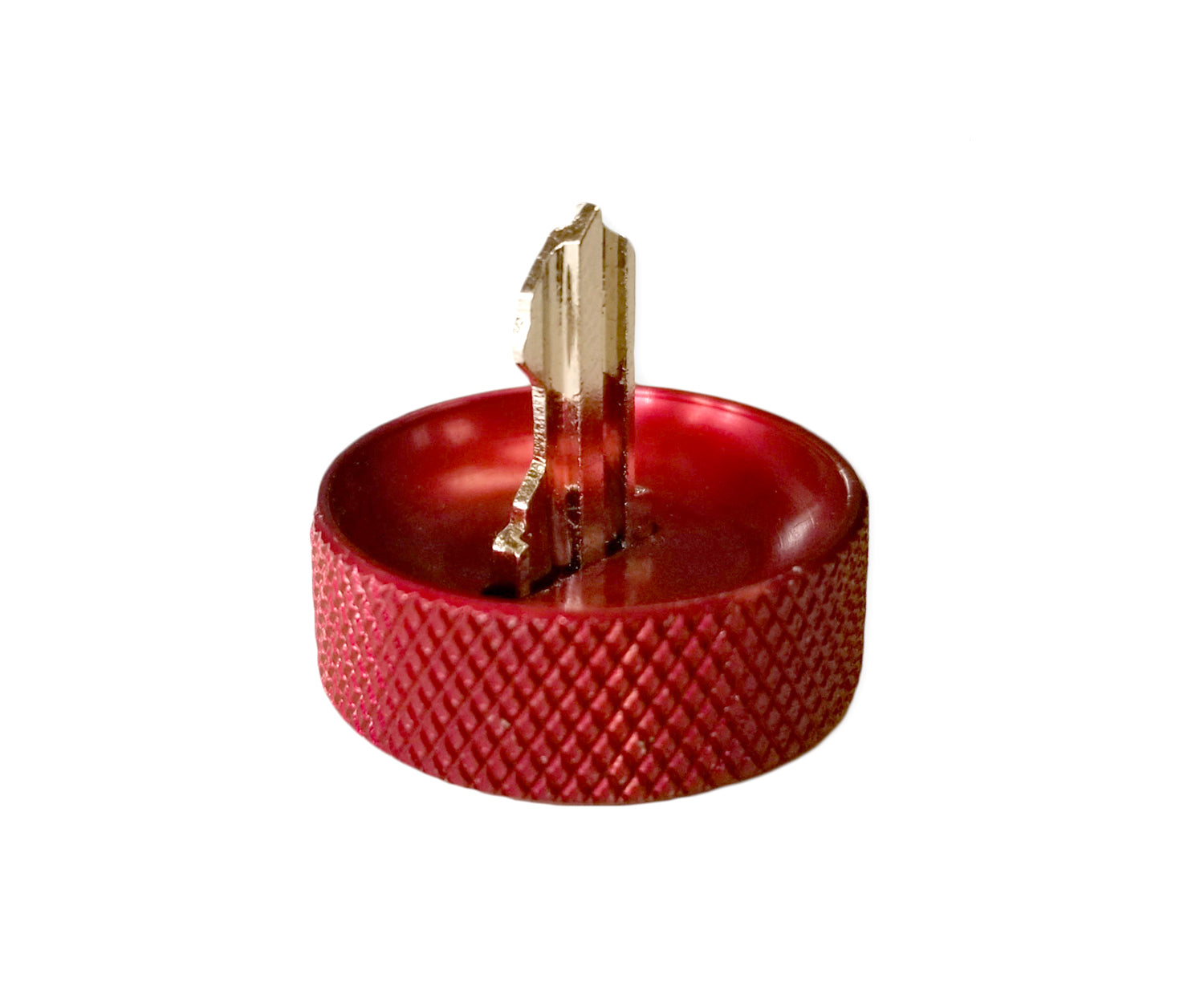

  • Key switch (x 2)
  • DeWalt Li-Ion battery (x2) and charger (110 V or 220 V available)
  • Remote firing cable, 3 m (10 ft)
  • Carrying Case
  • Easy grip housing with removable handle
  • Each system is identified with a Golden Engineering label including the model and serial number

Physical Dimensions

  • Length: 10.49 in. (26.65 cm)
  • Width: 3.54 in. (8.99 cm )
  • Height: 4.71 in. (11.96 cm)
  • Weight: 5.7 lbs. (2.58 kg)

X-Ray Output

  • X-ray dose per pulse: 2.4 mR per pulse
  • Pulse Rage: 10 pulses per second
  • Pulses per Battery Charge: 9000+
  • Expected tube life (glass tube): 50,000 counts (150,000 pulses)
  • X-ray source size: 1/8 in. (3 mm)
  • Maximum Photon Energy: 150 kVp
  • X-ray pulse width: 50 nanoseconds
  • Beam Angle: 40 degree standard

Electrical Specifications

  • Battery voltage: 20 volts
  • Battery type: DeWalt Lithium Ion

System

  • Max. Duty Cycle: 100 counts (300 pulses) per 4 minutes
  • Service Life: 50,000 counts (150,000 pulses)
  • Warranty: 1 year limited parts, labour, and service

*Measured 30 cm (12") from front of the unit


      Service and Training Available
