Tripod & Pan/Tilt Head Set (XRS4 Source)

BRS Innovations

  • $1,24999

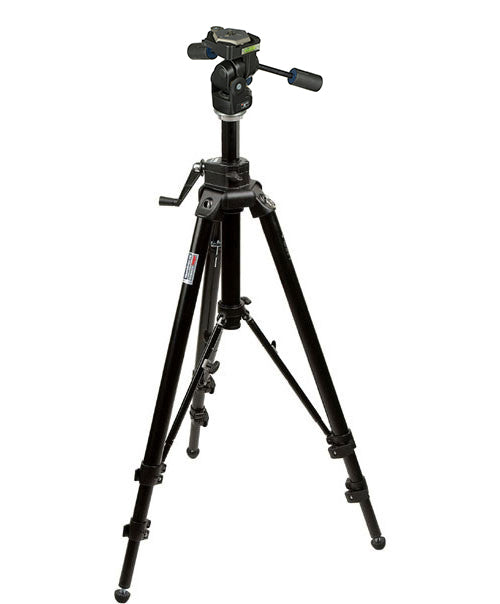

Golden Engineering SourcesIdeally suited for the XR150, XR200 and XRS3, this Deluxe Tripod set has been specifically chosen to meet the portability and weight requirements of the Golden Engineering XR150, XR200 and XRS3 portable x-ray source.

Set includes:

  • Manfrotto 475B Geared Tripod
  • Manfrotto 229 Super Pro

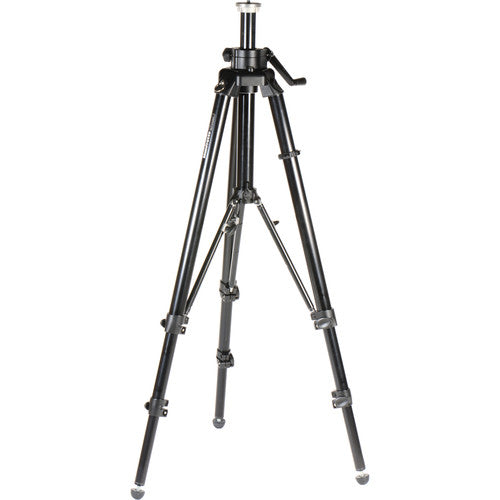

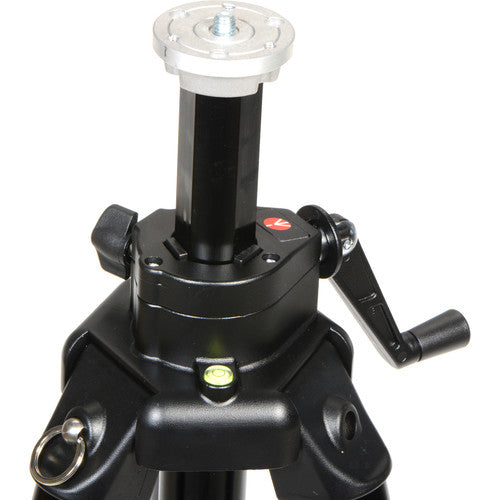

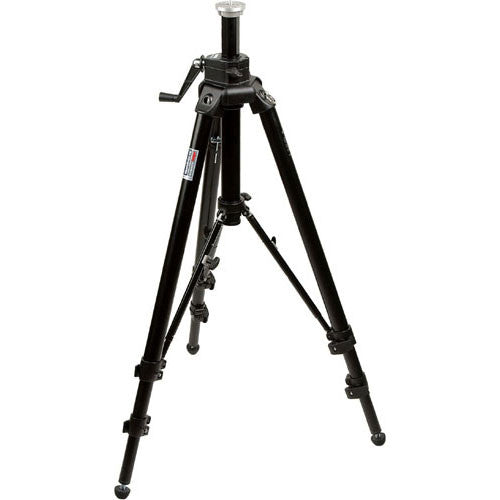

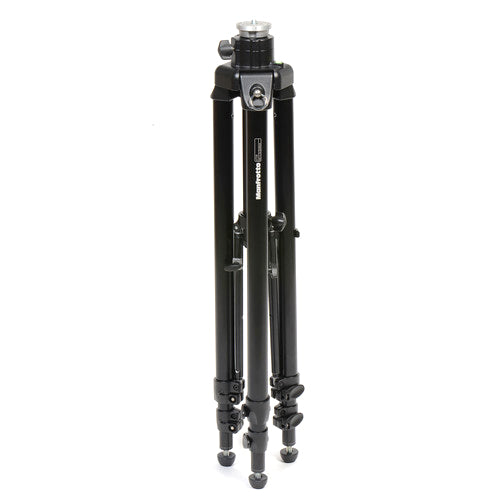

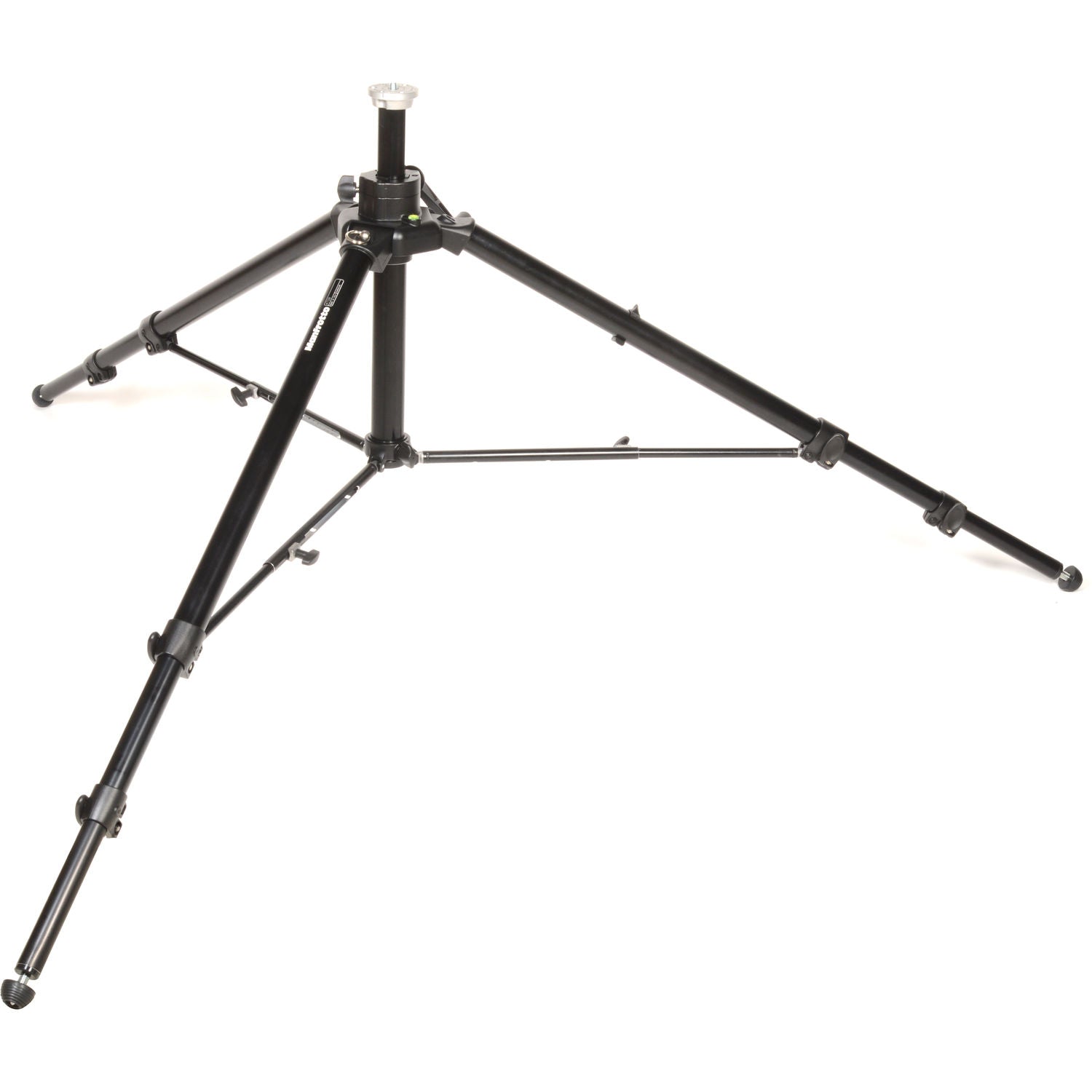

The Manfrotto 475B Pro Geared Tripod with Geared Column is a workhorse with modernized features, in essence a much improved version of the venerable 3036. It can extend to over 6' tall, and the geared center column cannot lose height accidentally. The 475 maintains stability at all heights, and the innovative leg braces allow for both infinite leg spread & quick setup. A spirit level and convertible rubber/spike feet are included.

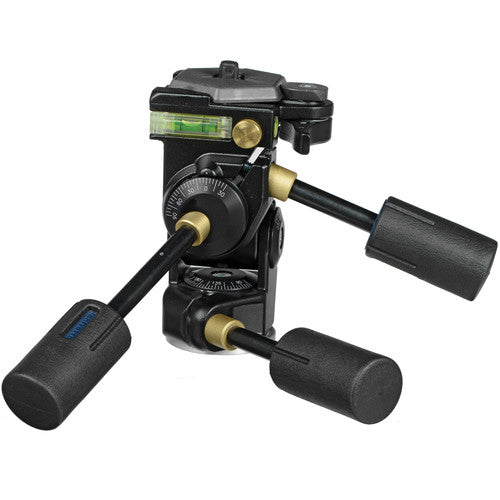

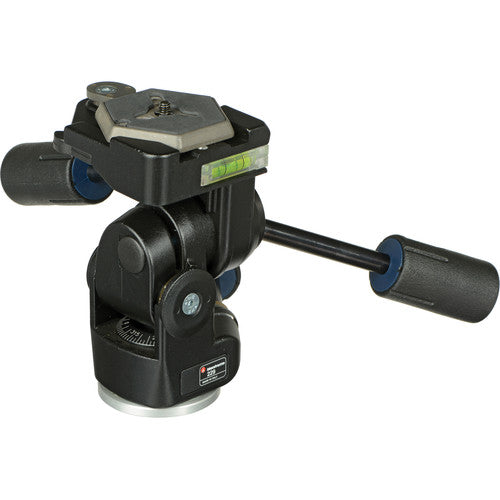

The Manfrotto 229 Super Pro Head is a finely machined head, designed for greater positioning precision with smooth, certain action. It features three built-in bubble levels for horizontal and vertical control, and the oversized handles have calibrated degree indicators viewed from the operator's position for all axes. This rock-steady head locks easily and securely.


Load Capacity 26.5 lbs / 12 kg
Maximum Working Height 74" / 188 cm
Max Height without Center Column 63.8" / 162.1 cm
Minimum Working Height 16.9" / 42.9 cm
Folded Length 31.5" / 80 cm
Head Mount Type 3/8"-16 Screw
Weight 9.5 lbs / 4.3 kg
Materials Aluminum Alloy
Bubble Level Yes


Super Pro Head
Load Capacity 26.5 lbs (12kg)
Height 6.3" (16cm)
Quick Release Yes
Spirit Level Yes (in both axes)
Tension Control No
Tripod Mount Thread Size 3/8"-16
Weight 4.25 lbs (2kg)
